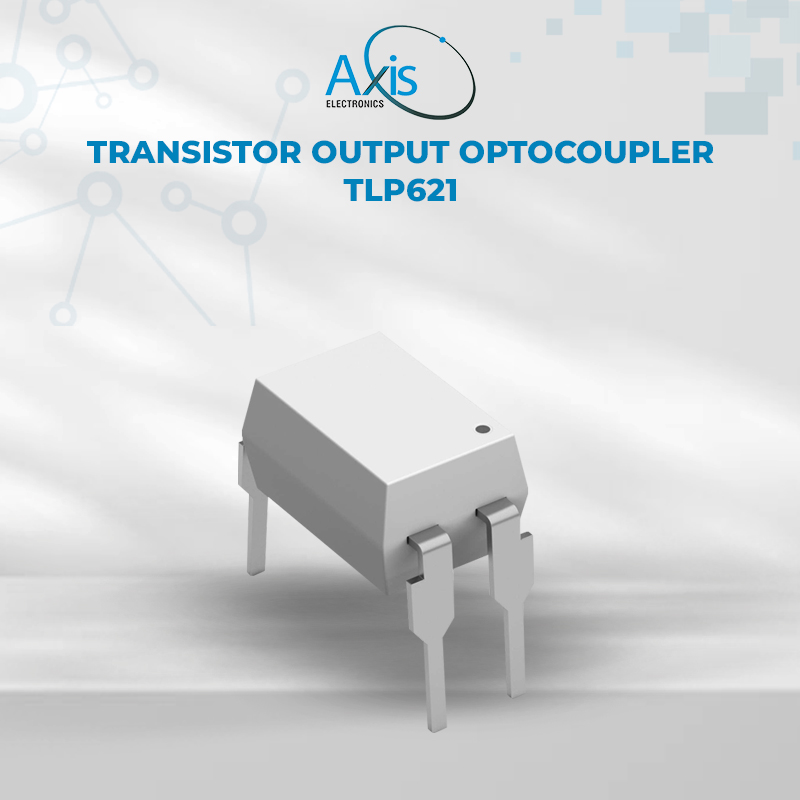

Transistor Output Optocoupler TLP621

Description

The TLP621 is a single-channel optocoupler (photocoupler) device that consists of a gallium arsenide infrared emitting diode optically coupled to an NPN phototransistor in a 4-pin Through-Hole DIP (DIP-4) package. It provides electrical isolation between input and output circuits, enabling safe signal transfer between high- and low-voltage sections of electronic systems.

FEATURES

• Output Type: NPN Phototransistor
• Number of Channels: 1
• Isolation Voltage: 5000 Vrms typical
• Collector-Emitter Voltage: 55 V min
• Current Transfer Ratio: ≥ 50 % @ 5 mA
• Max Output Current: ~50 mA (typical, transistor output)
• Input Type: DC infrared LED
• Approvals: UL1577, cUL, VDE (option)
• RoHS / Lead Free: Yes
• Mounting Style: Through Hole

SPECIFICATION

• Dimension: 7.62 × 4.6 × 4.5 mm
• Additional information
• Gross weight: 0.238 g
• Manufacturer part number: TLP621
