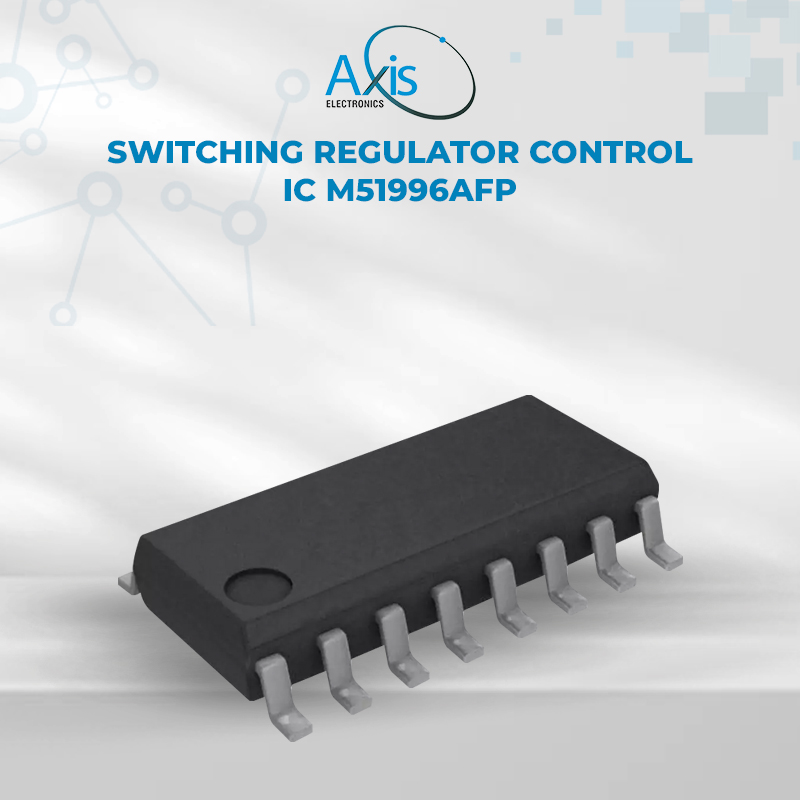

Switching Regulator Control IC M51996AFP

Description

The M51996AFP is a primary switching regulator controller IC designed to generate a regulated DC voltage from an AC or DC supply. It directly drives MOSFETs with fast rise/fall output pulses and uses pulse-width modulation (PWM) for efficient switching power regulation. Originally developed by Mitsubishi Electric and now under Renesas Electronics, this device is used in DC-DC converters and switching power supplies for industrial and electronic applications.

FEATURES

• Control Technique: PWM pulse width modulation
• Operating Frequency: ~500 kHz
• Input Voltage Range: ~12V to 30V
• Output Current: ~±1 A
• Operating Temperature: −30 °C to +85 °C
• Lifecycle Status: Obsolete / discontinued
• RoHS Compliance: Lead-free
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 5.30 × 10.10 × 1.27 mm
• Additional information
• Gross weight: 1 g
• Manufacturer part number: M51996AFP
