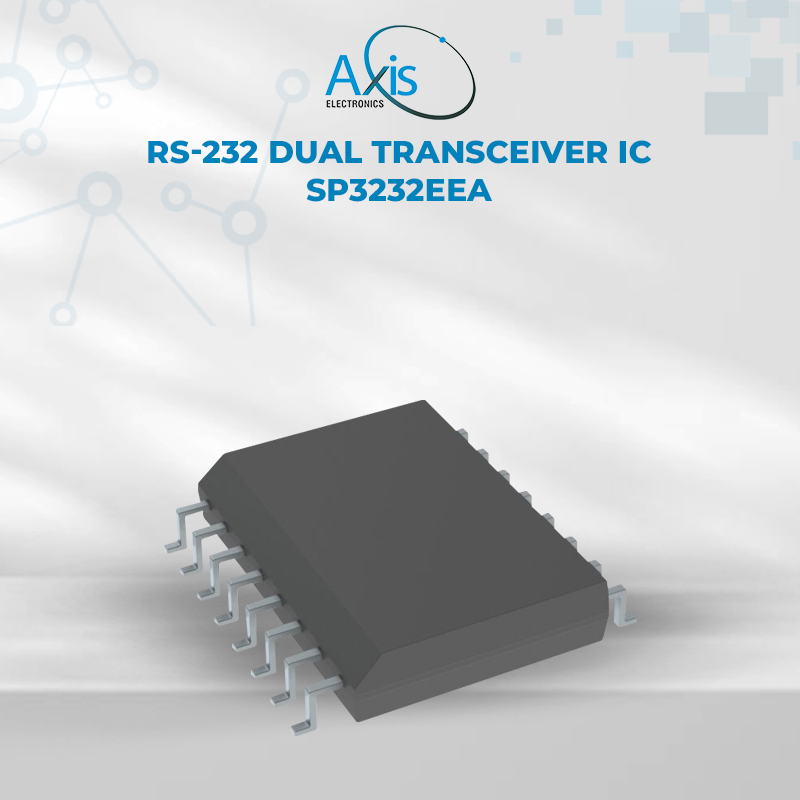

RS-232 Dual Transceiver IC SP3232EEA
Description
The SP3232EEA is a low-power, full-duplex RS-232 transceiver designed to interface between low-voltage logic (TTL/CMOS) and RS-232 communication voltage levels. It integrates two drivers and two receivers in a single compact 16-lead SSOP package, enabling bidirectional asynchronous serial data transmission per the EIA/TIA-232 standard. The device operates from a single supply voltage from 3.0 V to 5.5 V, making it suitable for portable, battery-powered, and embedded systems.
FEATURES
- Supply Voltage: 3.0 V – 5.5 V
- Operating Temperature: −40 °C to +85 °C
- Data Rate: ~235 kbps (typical)
- Drivers / Receivers: 2 Drivers / 2 Receivers
- ESD Protection: up to ±15 kV
- Mounting Style: Surface Mount
SPECIFICATION
- Dimension: 6.2 × 5.3 × 1.75 mm
- Additional information
- Gross weight: 0.13 g
- Manufacturer part number: SP3232EEA
