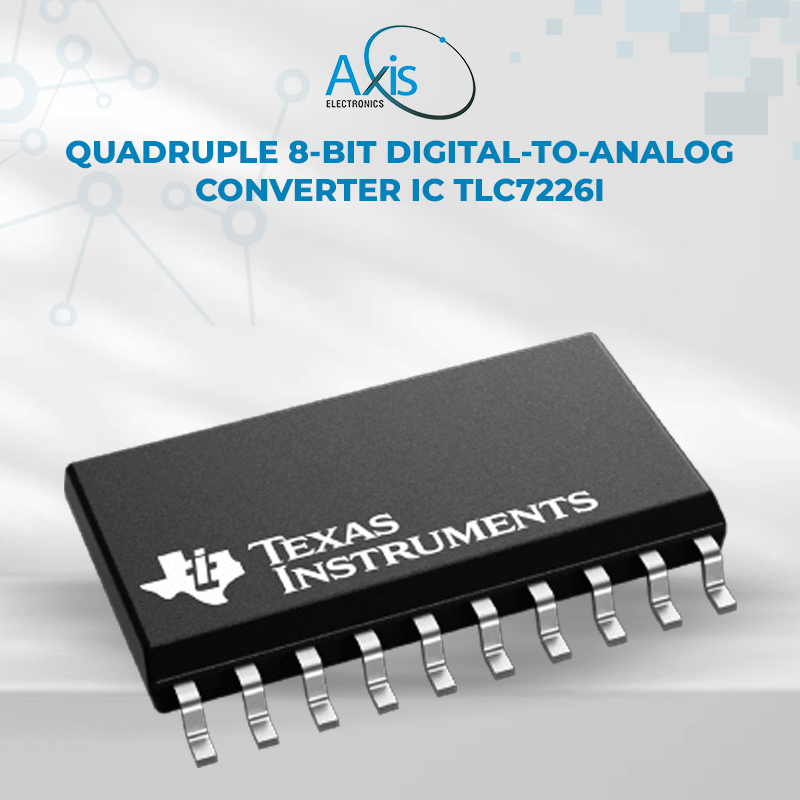

Quadruple 8‑Bit Digital‑to‑Analog Converter IC TLC7226I

Description

The TLC7226I is a quad 8‑bit voltage‑output digital‑to‑analog converter (DAC) with built‑in output buffer amplifiers and parallel interface logic on a single monolithic IC. It includes four separate on‑chip latches and accepts data through a common 8‑bit TTL/CMOS‑compatible input port. This part is designed for microprocessor‑compatible systems where multiple analog outputs must be generated under digital control.

FEATURES

• Number of DAC Channels: 4
• Interface Type: Parallel
• Output Type: Buffered voltage output
• Output Voltage Range: 0 V up to reference voltage (~10 V)
• Settling Time: ~5 µs typical
• Supply Voltage: VDD typically around 5 V ± tolerance (CMOS compatible)
• Operating Temperature: –25 °C to +85 °C (Industrial)
• Power Consumption: ~90 mW typical
• Compatibility: Microprocessor, TTL/CMOS
• Technology: CMOS (LinBiCMOS™)
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 12.8 × 7.52 × 2.35 mm
• Additional information
• Gross weight: 0.528 g
• Manufacturer part number: TLC7226I
