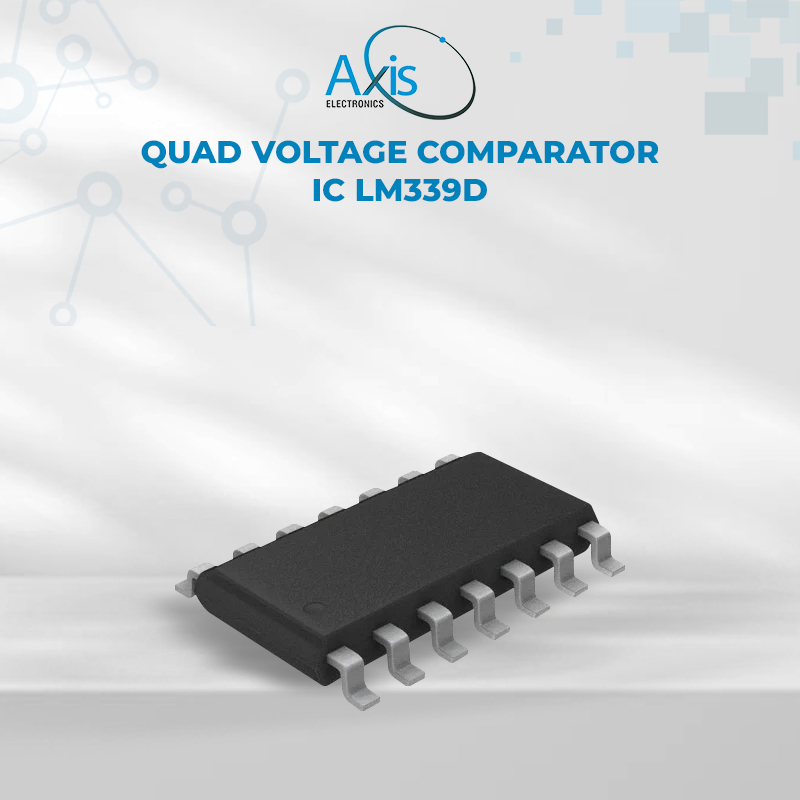

Quad Voltage Comparator IC LM339D

Description

The LM339D is a quad differential input voltage comparator integrated circuit. It contains four independent precision voltage comparators designed to operate over a wide range of supply voltages from single or dual supplies. The device’s comparators compare two input voltages and change the output state accordingly, making it ideal for threshold detection, level-shifting, and analog signal comparison tasks in mixed-signal systems. The outputs are open-collector, allowing them to interface with various logic families (TTL/CMOS/DTL/ECL) and enabling wired-AND configurations.

FEATURES

• Supply Voltage: 2 V to ~30 V
• Supply Voltage: ±1 V to ±15 V
• Input Offset Voltage: ~5 mV @ 30 V
• Input Bias Current: ~0.25 µA @ 5 V
• Output Type: Open-collector, logic compatible
• Output Current: ~16–20 mA
• Quiescent Current: ~2.5 mA total
• Common-Mode Input Range: Includes ground
• Operating Temp Range: 0 °C to 70 °C

SPECIFICATION

• Dimension: 8.65 × 3.91 × 1.58 mm
• Additional information
• Gross weight: 0.14 g
• Manufacturer part number: LM339D
