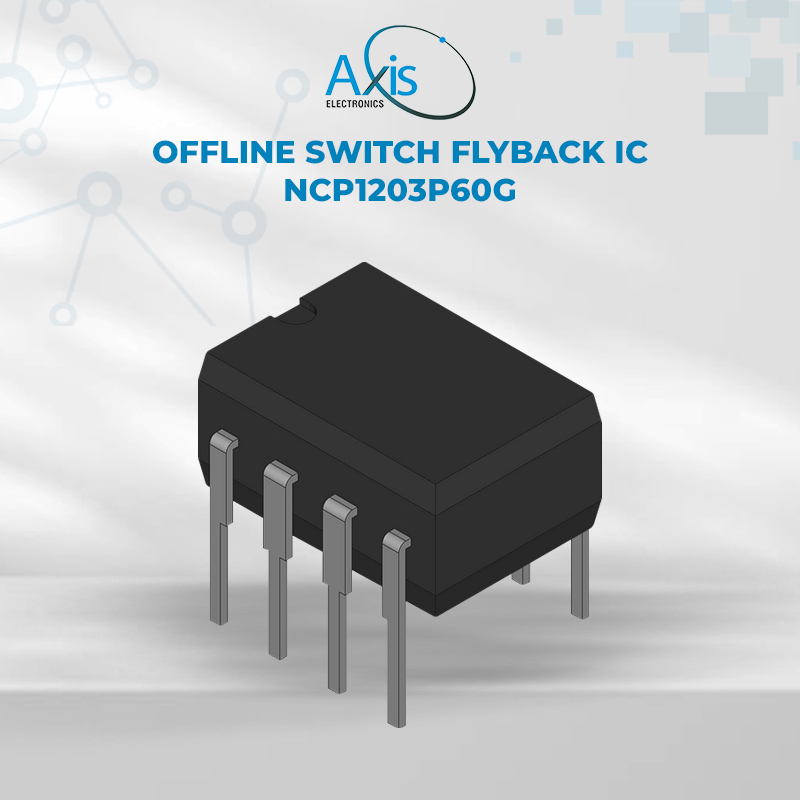

Offline Switch Flyback IC NCP1203P60G

Description

The NCP1203P60G is a power management integrated circuit designed for offline AC-DC power conversion, featuring a flyback topology switch controller suited for isolated power supply applications. It integrates control circuitry suitable for low-power switch-mode power supplies with built-in protection features.

FEATURES

• Switching Frequency: ~60 kHz
• Supply Voltage: 7.8 – 16 V
• Startup Voltage: ~12.8 V
• Duty Cycle: 80 %
• Operating Temperature: –40 °C to +125 °C
• Output Current Capability: 250 mA
• Internal Switch: No
• Compliance: RoHS3
• Part Status: Obsolete
• Mounting Style: Through Hole

SPECIFICATION

• Dimension: 10.16 × 7.11 × 4.95 mm
• Additional information
• Gross weight: 0.9 g
• Manufacturer part number: NCP1203P60G
