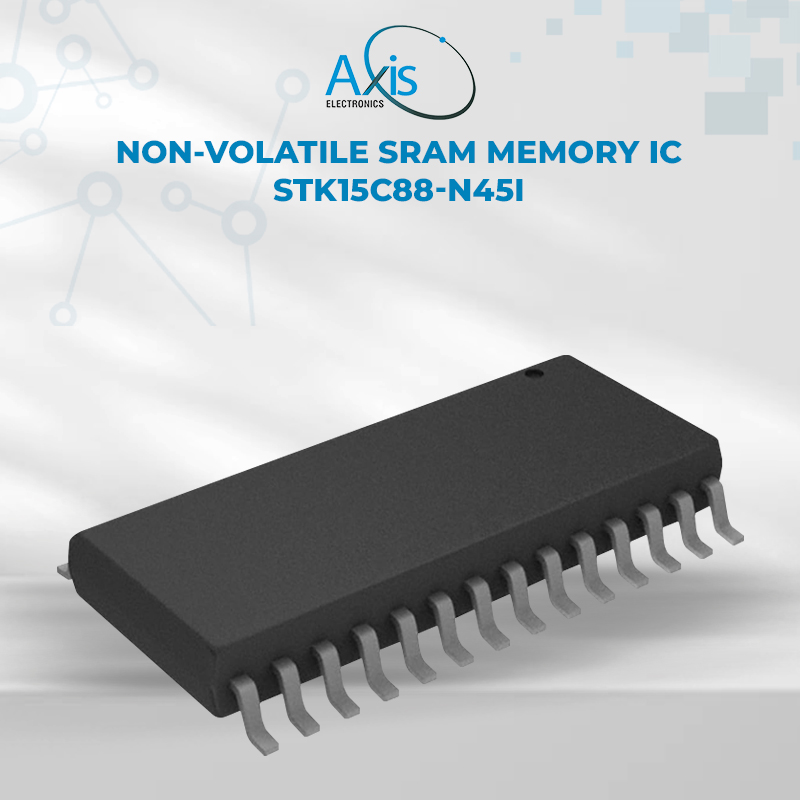

Non‑Volatile SRAM Memory IC STK15C88-N45I

Description

The STK15C88-N45I is a 256‑Kbit (32 K × 8) non‑volatile static RAM (NVSRAM). It combines a SRAM array with an independent, non‑volatile storage element in each cell. When power is removed, data in the SRAM is stored automatically to the non‑volatile element and recovered on power up.

FEATURES

• Memory Type: NVSRAM (Non‑Volatile Static RAM)
• Memory Size: 256 Kb (32 K × 8)
• Access Time: 45 ns typical
• Interface: Parallel
• Voltage Supply: 4.5 V – 5.5 V
• Operating Temp: –40 °C to +85 °C (industrial)
• Output Current / Supply: ~70 mA
• Non‑Volatile STORE/RECALL: Automatic / software control
• RoHS Status: Contains lead / non‑RoHS compliant
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 18 × 7.5 × 2.4 mm
• Additional information
• Gross weight: 2.2 g
• Manufacturer part number: STK15C88-N45I
