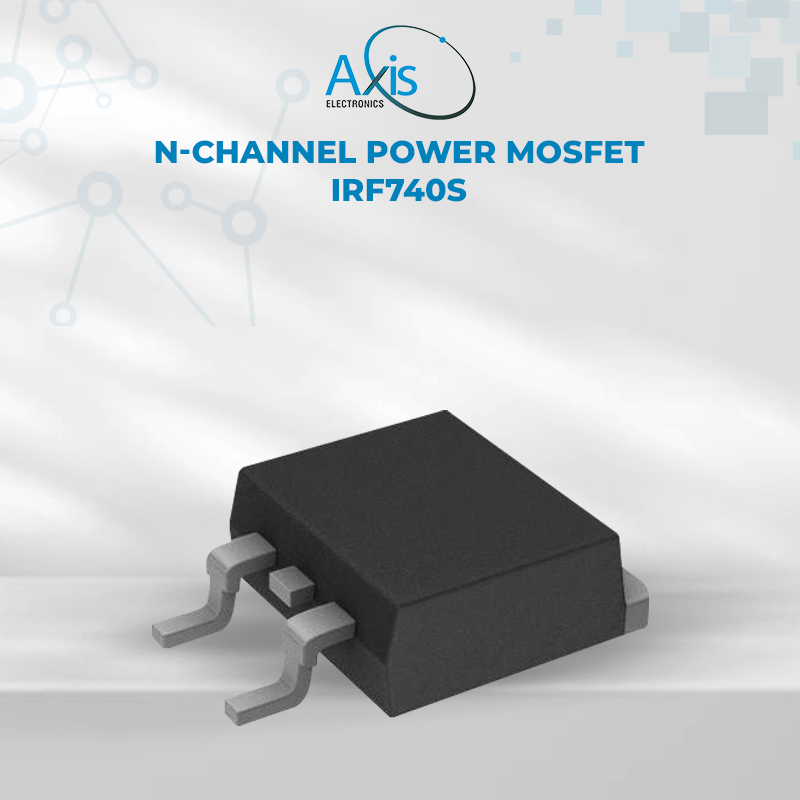

N-Channel Power MOSFET IRF740S

Description

IRF740S is a Third-generation power MOSFET designed for high reliability, low on-resistance, fast switching, and ease of paralleling. The surface-mount D2PAK (TO-263) package supports high power capability with rugged design and cost-effective performance.

FEATURES

• Drain-Source Voltage: 400 V
• Continuous Drain Current: 10 A
• On Resistance: ~0.55 Ω
• Gate Threshold Voltage: ~4 V
• Gate-Source Max Voltage: ±20 V
• Gate Charge: ~63 nC
• Input Capacitance: ~1400 pF
• Power Dissipation: ~125 W
• Power Dissipation: ~3.1 W
• Operating Temp Range: −55 °C to +150 °C
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 10.67 × 9.65 × 4.83 mm
• Additional information
• Gross weight: 1.44 g
• Manufacturer part number: IRF740S
