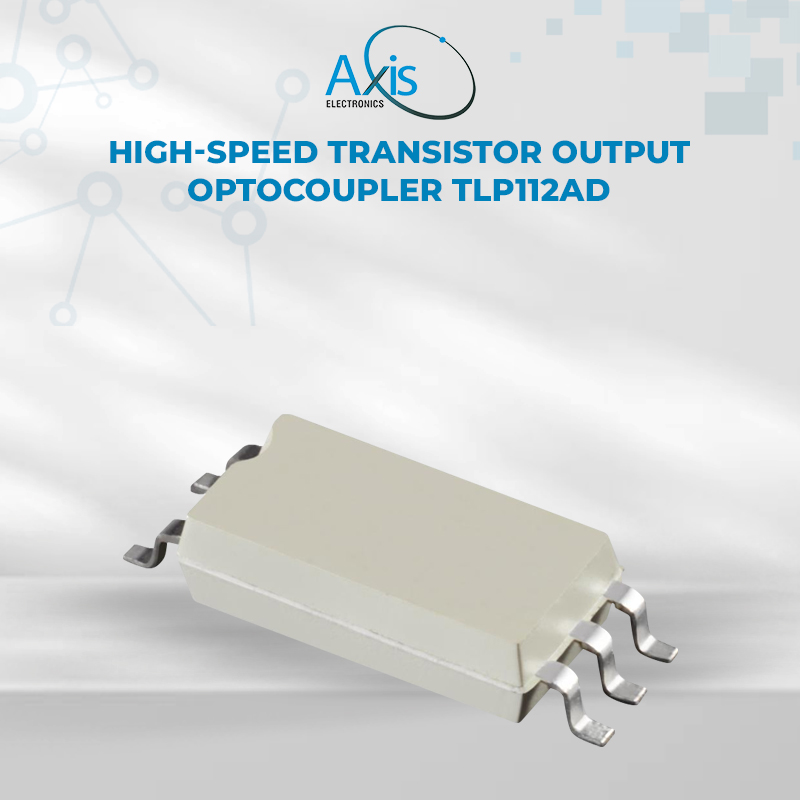

High-Speed Transistor Output Optocoupler TLP112AD

Description

The TLP112A is an optocoupler device consisting of an infrared emitting diode (IRED) optically coupled to a high-speed photodetector transistor. It is designed for digital logic isolation and signal interfacing across different parts of a circuit without direct electrical connection (galvanic isolation). It is used to transfer logic signals safely across separated power domains while protecting sensitive electronics from noise and high voltages.

FEATURES

• Isolation Voltage: ≥ 2500 Vrms
• Switching Speed: ~0.8 μs
• Current Transfer Ratio: ~20% @ 16 mA
• Forward Voltage: ~1.4 V @ 16 mA
• Reverse Voltage: ~5 V
• Collector-Emitter Voltage: ~15 V (max)
• Power Dissipation: ~100 mW
• Operating Temp: −55°C to +100°C
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 3.6 × 4.4 × 2.5 mm
• Additional information
• Gross weight: 0.09 g
• Manufacturer part number: TLP112AD
