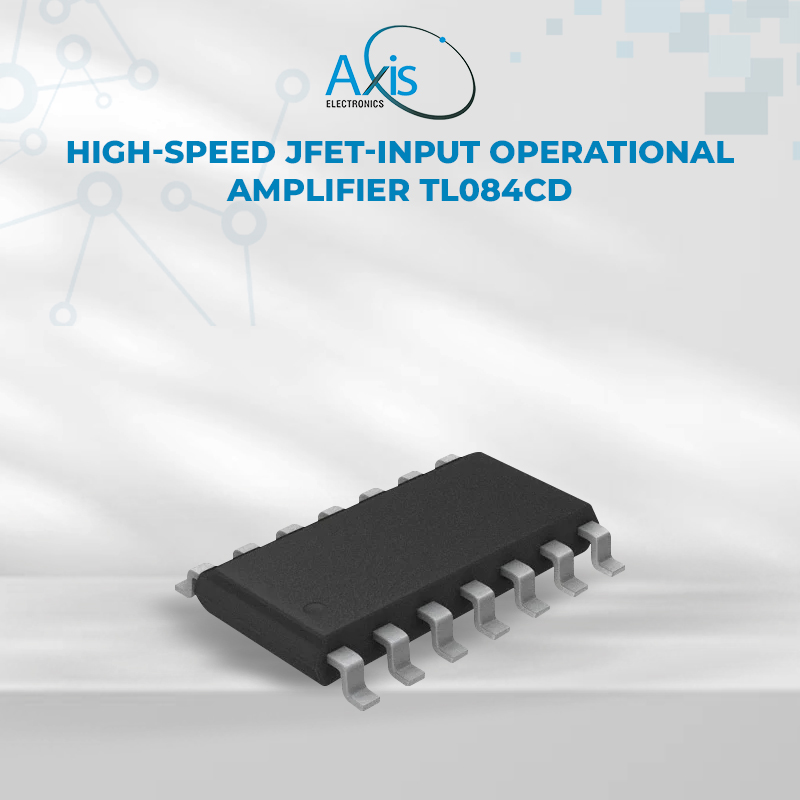

High-Speed JFET-Input Operational Amplifier TL084CD

Description

The TL084CD is a quad operational amplifier IC incorporating a high-performance JFET input stage with bipolar output devices in a monolithic integrated circuit. It integrates four independent op-amp channels in a single 14-pin SOIC surface-mount package. This device is designed for general-purpose analog signal processing with high input impedance, low bias currents, and fast slew rates, making it suitable for active filters, signal conditioning, integrators, and other analog circuits requiring stable, wide-range performance.

FEATURES

• Supply Voltage: 6 V – 36 V
• Supply Voltage: ±3 V – ±18 V
• Gain Bandwidth: ~3 MHz – 4 MHz
• Slew Rate: ~16 V/µs
• Input Offset Voltage: ~3 mV
• Input Bias Current: ~20–30 pA
• Supply Current: ~1.4 mA per channel
• Output Current: ~40 mA per channel
• Operating Temp. Range: 0 °C – +70 °C
• Typical CMRR: ~70 dB

SPECIFICATION

• Dimension: 8.75 × 4.0 × 1.65 mm
• Additional information
• Gross weight: 0.128 g
• Manufacturer part number: TL084CD
