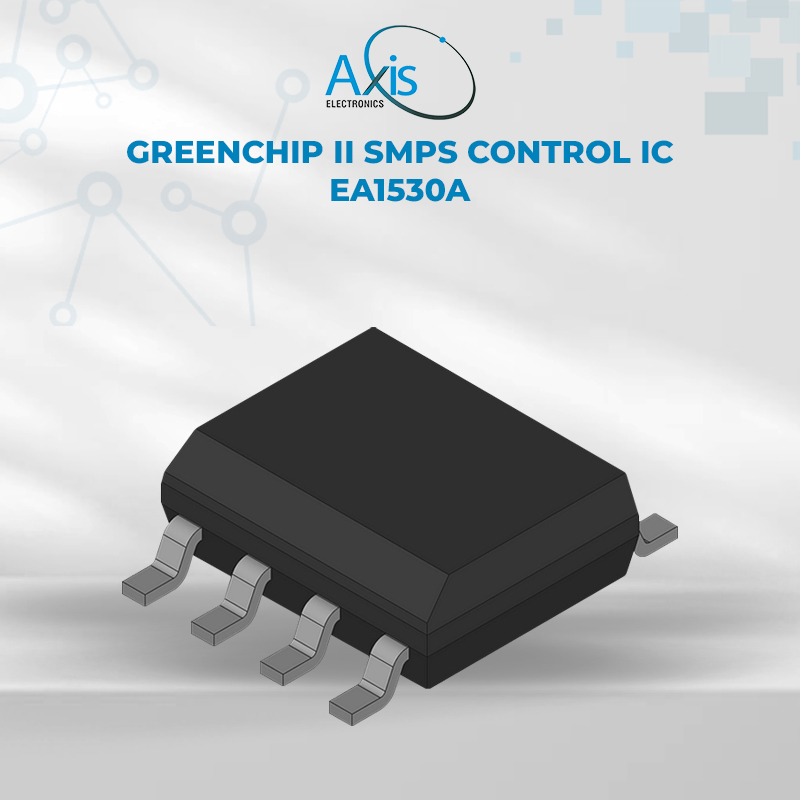

GreenChip II SMPS Control IC

Description

The EA1530A is a monolithic SMPS controller IC optimized for offline flyback power supplies, intended for low-to-medium power (up to ~65 W) applications. It integrates key control and protection functions to simplify design and improve efficiency with minimal external parts.

FEATURES

• Supply voltage: ~8.7 V – 15 V
• Start-up voltage: ~10.3 V – 11.7 V
• Operating supply current: ~1.1 mA – ~1.5 mA
• Startup current source: ~1.0 mA – ~1.4 mA
• Driver output capability: Sink up to ~0.5 A; source ~150–250 mA
• Overtemperature shut-down: ~130 °C – 150 °C
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 4.9 × 3.9 × 1.75 mm
• Additional information
• Gross weight: 0.07 g
• Manufacturer part number: EA1530A
