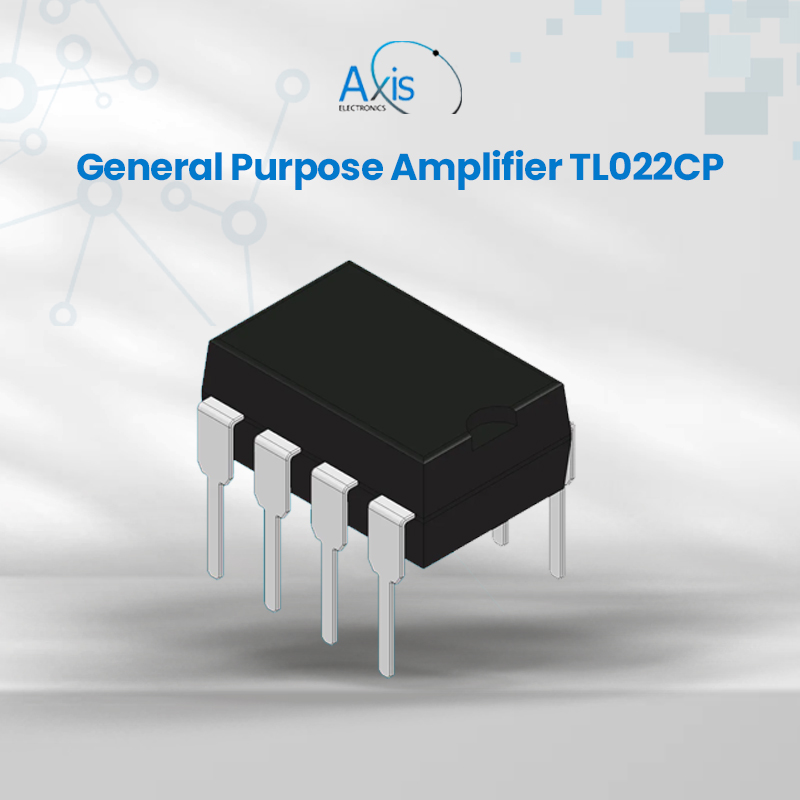

General Purpose Amplifier TL022CP

Description

TL022CP General Purpose Amplifier 2 Circuit 8-PDIP.

FEATURES

• Number of Circuits: 2
• Output Type: –
• Slew Rate: 0.5V/µs
• Gain Bandwidth Product: 500 kHz
• Current – Input Bias: 100 nA
• Voltage – Input Offset: 1 mV
• Current – Supply: 130µA (x2 Channels)
• Current – Output / Channel: 6 mA
• Voltage – Supply Span (Min): 10 V
• Voltage – Supply Span (Max): 30 V
• Operating Temperature: 0°C ~ 70°C
• Mounting Type: Through Hole

SPECIFICATION

• Dimension: 3.43 × 9.27 × 7.24 mm
• Additional information
• Gross weight: 0.4 g
• Manufacturer part number: TL022CP
