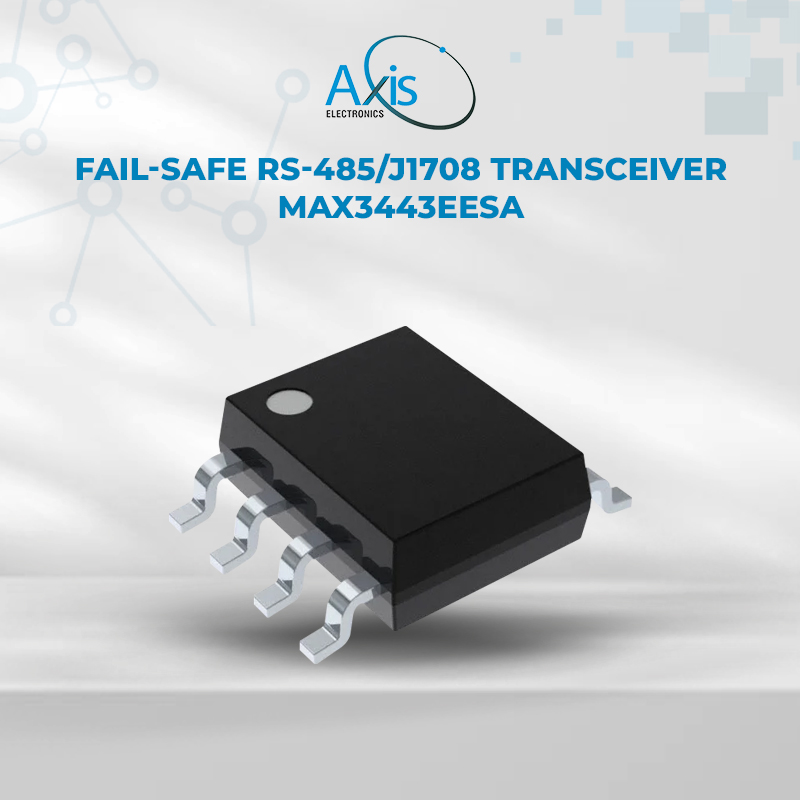

Fault-Protected Transceiver IC MAX3443EESA

Description

The MAX3443EESA is a fault-protected RS-485/J1708 transceiver IC from Maxim Integrated (now part of Analog Devices). It integrates one differential line driver with a three-state output and one differential line receiver with a three-state input. The device is designed to support robust serial data communication over RS-422 and RS-485 networks, particularly in industrial and noisy environments with significant electrical stress or fault conditions present. brittanyj15 vera farmiga nudeFEATURES

Communication Mode: Half-Duplex
Number of Drivers/Receivers: 1 Driver / 1 Receiver
Data Rate: Up to 10 Mbps
Supply Voltage: 4.75 V – 5.25 V
ESD Protection: ±15 kV (HBM)
Fault Protection: ±60 V on bus lines
Receiver Input Impedance: 1/4 unit load (supports many nodes)
Operating Temperature: -40 °C to +85 °C
Mounting: Surface Mount

SPECIFICATION
