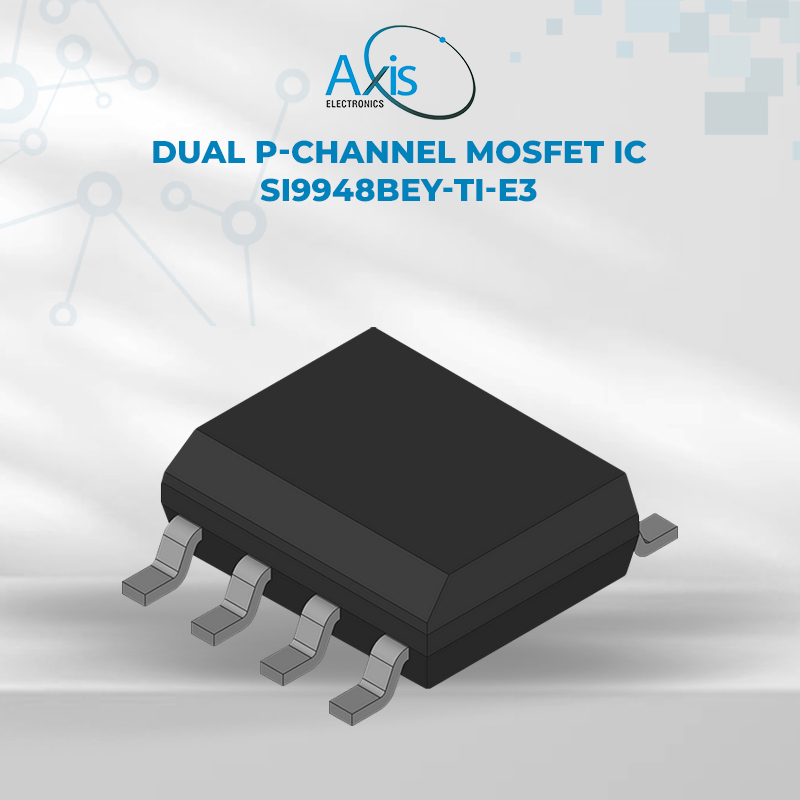

Dual P-Channel MOSFET IC SI9948BEY-TI-E3

Description

The SI4948BEY-T1-E3 is a dual P-channel enhancement-mode MOSFET transistor in a surface-mount SOIC-8 package. It is designed for use in power management and switching applications where moderate voltage and current handling is needed. This device integrates two P-channel MOSFETs within one IC and is often used in motor control, DC-DC converters, load switching, battery protection, and power management circuits due to its low on-resistance and robust performance.

FEATURES

• Drain-Source Voltage: –60 V
• Gate-Source Voltage: ±20 V
• Continuous Drain Current: ~2.4–3.1 A (25 °C)
• Threshold Voltage: ~1–3 V
• Gate Charge: ~22 nC @ 10 V
• Operating Temperature Range: –55 °C to +175 °C
• Technology: Metal-Oxide-Semiconductor (MOS)
• MSL (Moisture Sensitivity Level): 1 (lowest sensitivity)
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 4.9 × 3.9 × 1.75 mm
• Additional information
• Gross weight: 0.187 g
• Manufacturer part number: SI9948BEY-TI-E3
