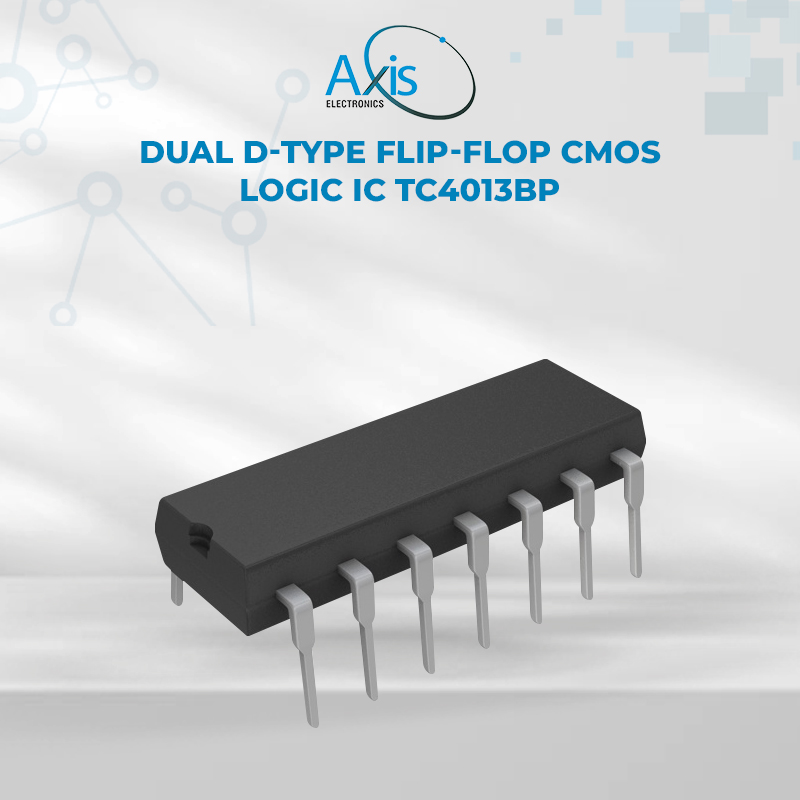

Dual D-Type Flip-Flop CMOS Logic IC TC4013BP

Description

The TC4013BP is a dual D-type flip-flop integrated circuit from the CMOS 4000 series logic family. It contains two independent D-type flip-flops with complementary outputs and set/reset inputs. Each flip-flop transfers the logic level from the DATA (D) input to the Q output on the positive-going edge of the clock signal, making this device suitable for digital data storage, sequential logic, and timing applications.

FEATURES

• Supply Voltage: 3 V – 18 V
• Operating Temperature: −40 °C to +85 °C
• Propagation Delay: ~50 ns @ VCC = 15 V
• Output Current: ~0.51 mA @ VCC = 5 V
• Inputs: CMOS/TTL-compatible (wide input range)
• Polarity: Inverting / Non-Inverting (complementary outputs)
• Trigger Type: Positive edge triggered
• Mounting Style: Through Hole
• Logic Family: 4000 CMOS

SPECIFICATION

• Dimension: 19.75 × 7.62 × 3.5 mm
• Additional information
• Gross weight: 0.96 g
• Manufacturer part number: TC4013BP
