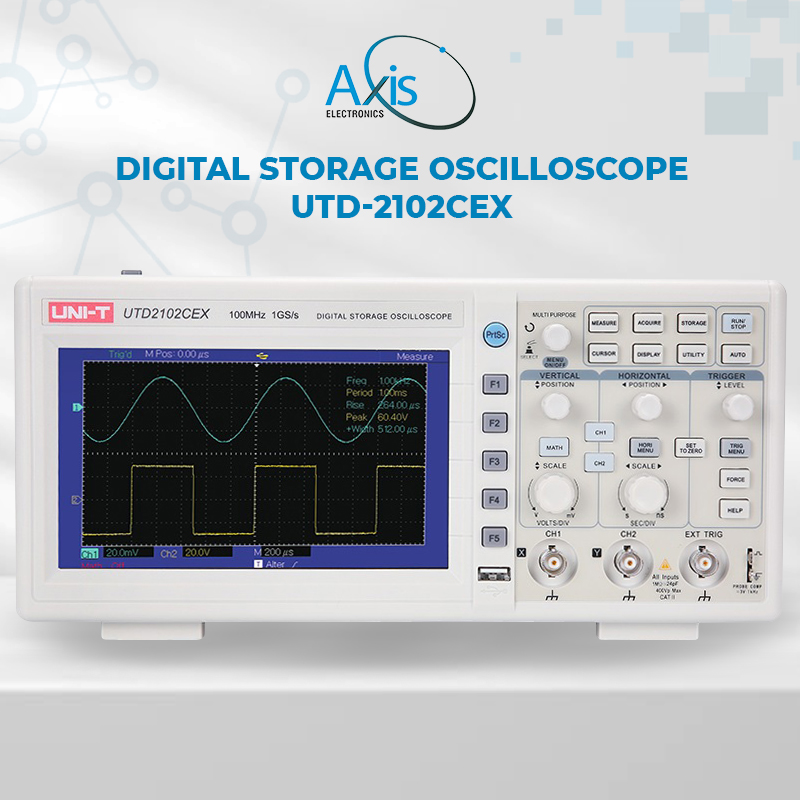

Digital Storage Oscilloscope UTD-2102CEX

Description

UTD-2102CEX 100 MHz Digital Storage Oscilloscope – 1 GS/s

FEATURES

• Bandwidth: 100 MHz
•  Sample Rate: 1 GS/s
• Rise Time: ≤ 3.5 ns
• Memory Depth: 25 kpts
• Waveform Acquisition Rate: ≥ 2000 wfms/s
• Vertical Sensitivity: 1m V ~ 20 V/div
• Time-Based Range: 2 ns/div ~ 50 s/div
• Storage: Setup, Wave, Bitmap
• Trigger Modes: Edge, Pulse, Alternate
• Interfaces: USB OTG

SPECIFICATION

• Power: 100 – 240 V AC RMS, 45 Hz ~ 440 Hz
• Display: 7 Inches 64 K Color TFT LCD (800 x 480)
• Dimension:  306 × 147 × 122 mm
• temperature probe
• test leads
• Additional information
• Gross weight: 2200 g
• Manufacturer part number: UTD-2102CEX
