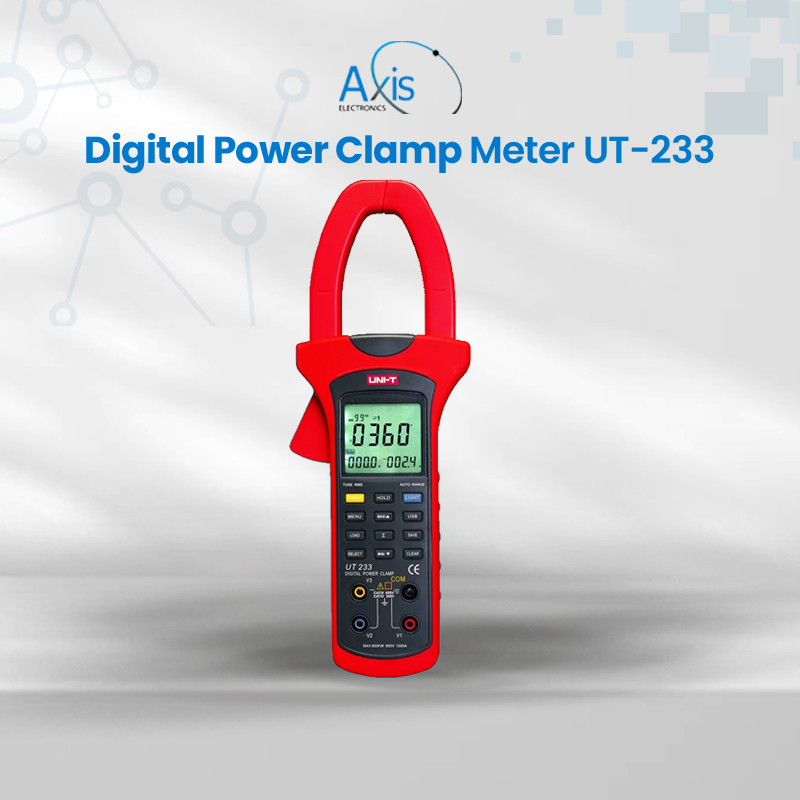

Digital Power Clamp Meter UT-233

Description

UT-233 is an intelligent, handheld and stable power and harmonics clamp meters, with functions of digital ammeter and power meter. telegram Goddess Vanessa Jay Vain It can measure voltage, current, active/reactive power, power factor, phase angle and more.FEATURES

• Auto ranging
• Single-phase 2-wires
• 3-phases 3-wires
• 3 phases 4-wires
• MAX/MIN mode
• Data Hold
• USB
• Full icon display
• Sleep mode
• True RMS (AC voltage or AC current)
• Calibration feature
• Data Logging 99
• Low battery display
• Display back light
• Max. display 9999 (46 x 42 mm)
• Input impedance (for AC voltage): 10 MOhm

SPECIFICATION

• AC Voltage: 15 V / 100 V / 300 V / 600 V
• AC Voltage: 40 A / 100 A / 400 A / 1000 A
• Active power: 0.01 kW – 600 kW
• Apparent power: 0.01 kV A ~ 600 kV A
• Reactive power: 0.01 kV Ar ~ 600 kV Ar
• Power factor: 0.3 ~ 1
• Phase angle: 0°C ~ 360°C
• Active energy: 1 ~ 9999 kWh
• Frequency: 20 Hz – 500 Hz
• Power: 4 x 1.5 V bat. (LR 16)
• Dimension: 303 × 112 × 39 mm
• temperature probe
• test leads
• Additional information
• Gross weight: 601 g
• Manufacturer part number: UT-233
