Description

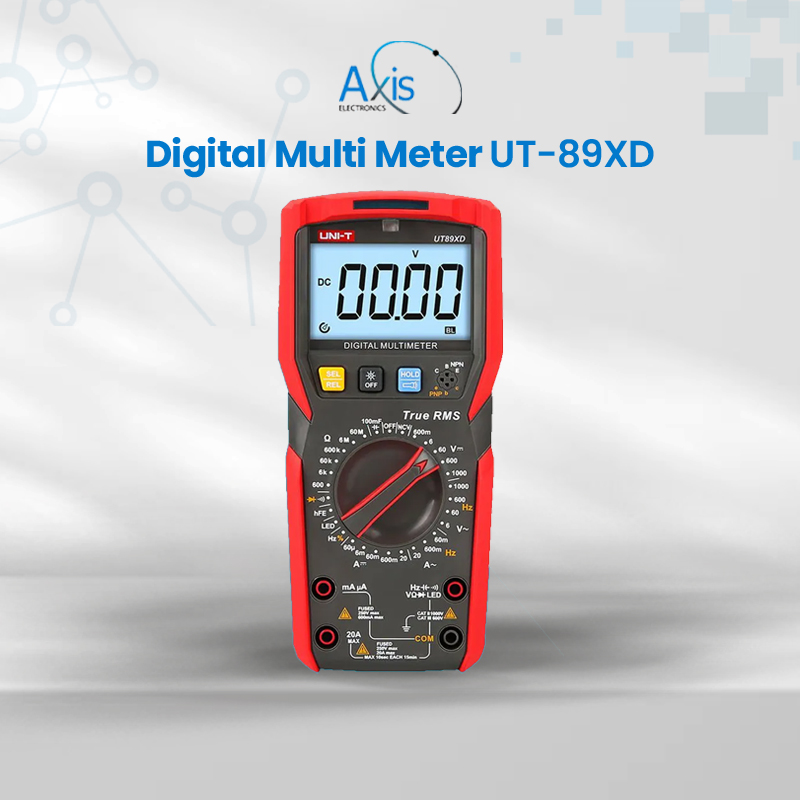

UT-89XD Digital Multi Meter is a reliable hand-held 3 5/6 bit digital multi meter with true RMS sine wave measurement. It can measure Max. 1000 V AC/DC voltage, Max. 20 A AC/DC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. It can perform LED test.
FEATURES
SPECIFICATION
- DC voltage: 600 mV / 6 V / 60 V / 600 V / 1000 V
- AC voltage: 6 V / 60 V / 600 V / 1000 V
- DC current: 60 μA / 6 mA / 60 mA / 600 mA / 20 A
- AC current: 60 mA / 600 mA / 20 A
- Resistance: 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ
- Capacitance: 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF / 100 mF
- Frequency: 9.999 Hz / 9.999 MHz
- Duty cycle: 0.1% ~ 99.9%
- Sampling rate: 3 times/s
- AC voltage frequency: 45 ~ 1000 Hz
- AC current frequency: 45 ~ 1000 Hz
- Power: 1.5 V battery (R 03) x 4
- Display: 61 mm x 36 mm
- Dimension: 189 × 89 × 53 mm
- temperature probe
- test leads
- Additional information
- Gross weight: 235 g
- Manufacturer part number: UT-89XD
