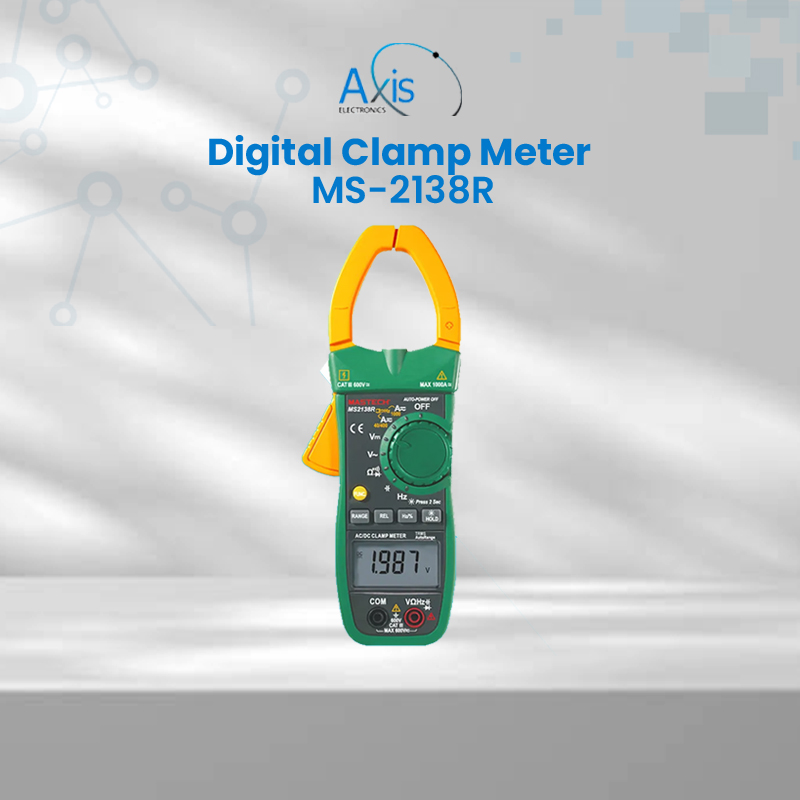

Digital Clamp Meter MS-2138R

Description

MS-2138R Digital Clamp Meter.

FEATURES

• Display Counts: 4000
• Jaw Opening:  Ф40mm/1.6″
• Auto & Manual Ranging
• Auto Power Off
• Diode Open Voltage: 2.8V
• Continuity Buzzer: <50±20Ω
• Relative Measurement
• Data Hold
• Low Battery Display
• Display Backlight
• Work Light
• Bar Graph
• True Root Mean Square

SPECIFICATION

• DC Voltage: 400mV / 4V / 40V / 400V / 600V
• AC Voltage: 400mV / 4V / 40V / 400V /  600V
• DC Current: 40A / 400A / 1000A
• AC Current: 40A / 400A / 1000A
• Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Capacitance: 40nF / 400nF / 4μF / 40μF / 400μF / 4000μF
• Frequency: 10Hz / 100Hz / 1kHz / 10kHz
• Duty Cycle: 0.1% ~ 99%
• Power Supply :  3 x 1.5V AAA Batteries
• Dimension: 222 × 86 × 32 mm
• Additional information
• Gross weight: 323 g
• Manufacturer part number: MS-2138R
