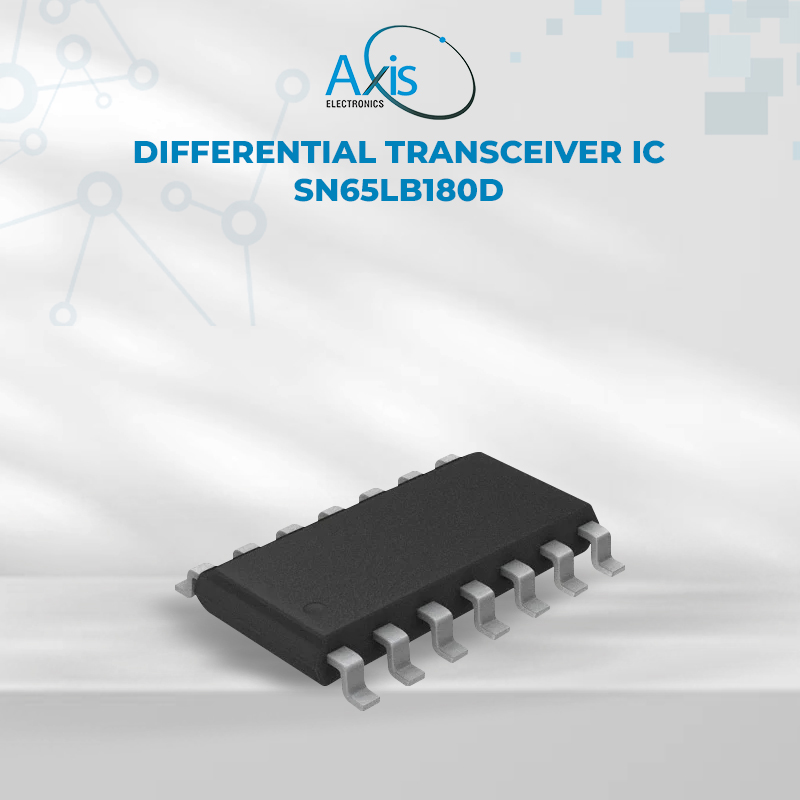

Differential Transceiver IC SN65LB180D
Description
The SN65LBC180D is a full-duplex differential line driver and receiver pair designed for bidirectional data communication on multipoint buses (such as RS-485 or RS-422). It pairs a line driver and receiver in a single SOP-14 surface-mount package, providing differential signaling for robust long-cable data transmission. These differential drivers and receivers meet or exceed the ANSI RS-485 and ISO 8482 standards and are suitable for industrial data transmission applications.
FEATURES
- Supply Voltage: Nominal 5 V (4.75 – 5.25V)
- Data Rate: ~10 Mbps typical (standard RS-485 speeds)
- Operating Temp Range: –40 °C to +85 °C
- ESD Protection: Typical built-in, limited; handle with care
- RoHS / REACH: Compliant
- Mounting Style: Surface Mount
SPECIFICATION
- Dimension: 8.65 × 3.91 × 1.75 mm
- Additional information
- Gross weight: 0.122 g
- Manufacturer part number: SN65LB180D
