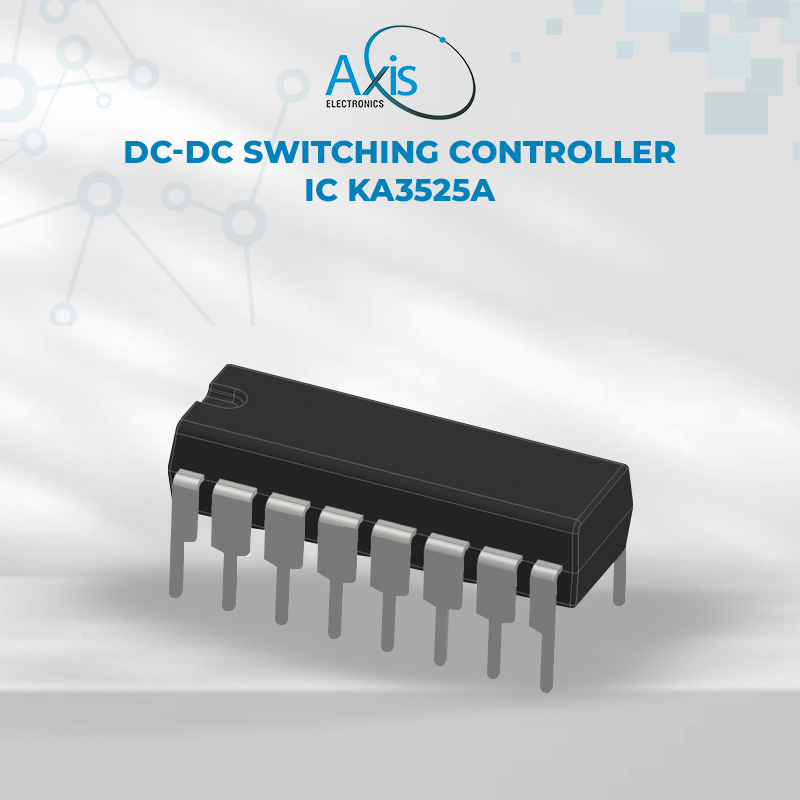

DC-DC Switching Controller IC KA3525A

Description

The KA3525A is a monolithic integrated circuit designed as a voltage-mode pulse-width modulation (PWM) controller for switch-mode power supplies (SMPS) and DC-DC converter applications. It integrates all required control circuitry — including a stable voltage reference, error amplifier, PWM comparator and latch, precision oscillator, under-voltage lockout (UVLO), soft-start feature, and output driver stage — to implement fixed-frequency PWM regulation with dead-time control and protection features.

FEATURES

• Supply Voltage: ~8 V – 35 V
• Switching Frequency: Up to ~430 kHz
• Voltage Reference: ~5 V ±1 %
• Output Drive: ~500 mA peak
• Operating Temp: ~0 °C to +70 °C
• Mounting Style: Through Hole

SPECIFICATION

• Dimension: 19.8 × 6.4 × 3.25 mm
• Additional information
• Gross weight: 1.63 g
• Manufacturer part number: KA3525A
