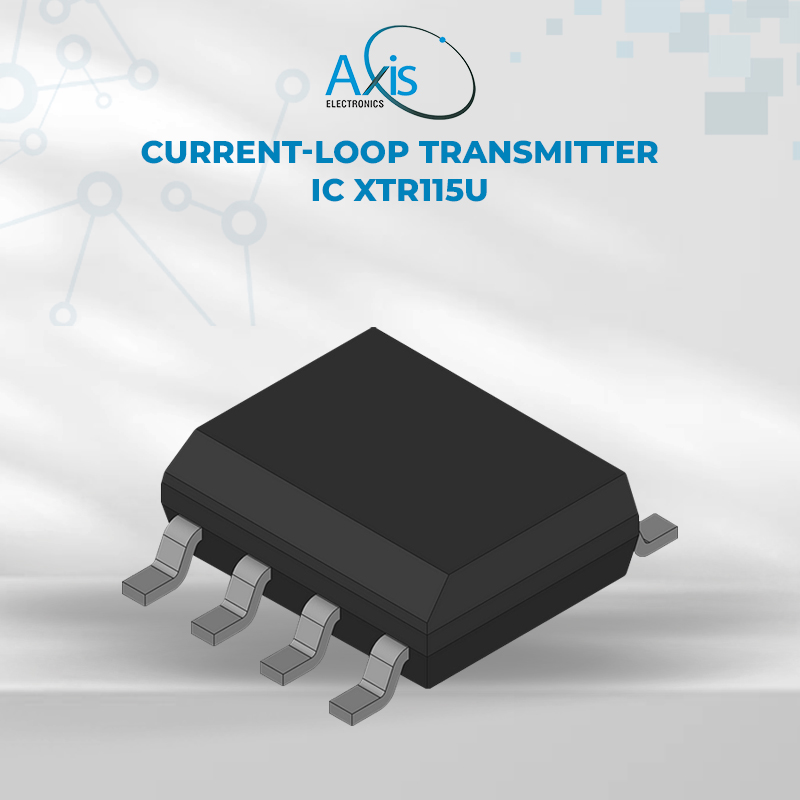

Current-Loop Transmitter IC XTR115U

Description

The XTR115U is a precision current-loop transmitter integrated circuit (IC) designed to convert a voltage input into a standardized current output for industrial 4-20 mA analog loops. It integrates a voltage regulator, precision reference, and current output driver to support robust, long-distance sensor signaling and smart transmitter applications.

FEATURES

• Input Type: Voltage
• Output Type: Voltage / Current transmitter driver
• Supply Current: ~20 mA (active loop)
• Reference Voltage: 2.5 V on-chip
• Loop Interface: 2-wire, 4–20 mA current loop
• Supply Voltage Range: 7.5 V to 36 V
• Operating Temperature: −40 °C to +85 °C (industrial)
• Part Status: Obsolete
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 4.9 × 3.91 × 1.75 mm
• Additional information
• Gross weight: 0.07 g
• Manufacturer part number: XTR115U
