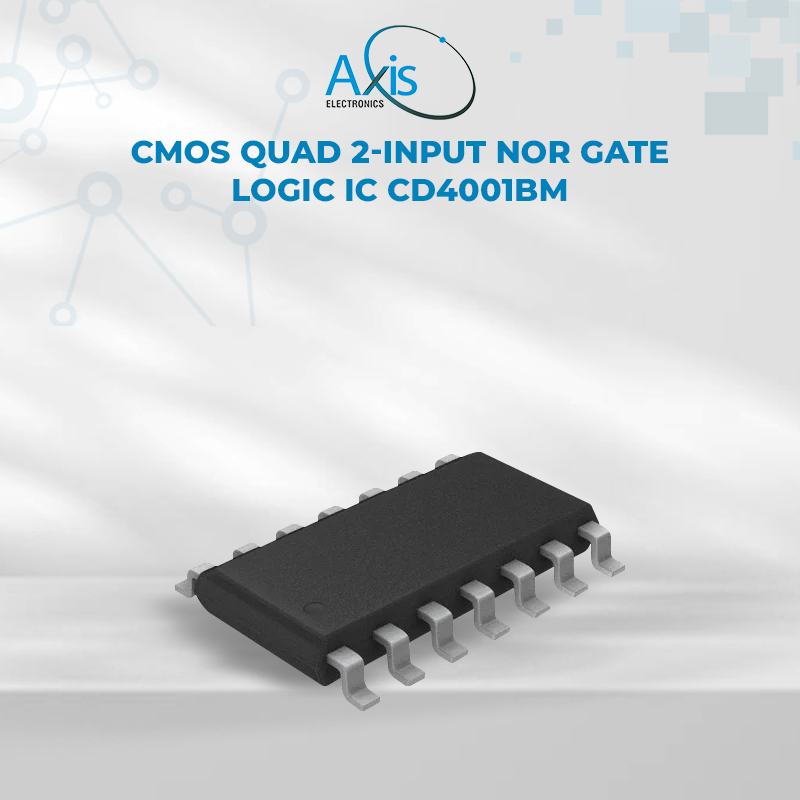

CMOS Quad 2-Input NOR Gate LOGIC IC CD4001BM

Description

The CD4001BM is a quad CMOS logic gate integrated circuit containing four independent 2-input NOR gates. It is part of the CMOS 4000B logic family, designed for general-purpose digital logic applications. The device is built using complementary MOS technology for low power consumption, high noise immunity, and a wide operating voltage range — making it suitable for both industrial and consumer electronics.

FEATURES

• Supply Voltage: 3 V to 18 V
• Input Type: CMOS logic inputs
• Output Type: Buffered CMOS push-pull
• Operating Temp.: –55 °C to +125 °C
• Quiescent Current: ~1 µA max (typical CMOS)
• Propagation Delay: ~90 ns max @ 15 V, CL = 50 pF
• Number of Gates: 4 (two-input NOR each)
• Logic Levels: CMOS logic compatible
• RoHS / Lead-Free: Yes
• Mounting Style: Surface Mount

SPECIFICATION

• Dimension: 8.65 × 3.91 × 1.58 mm
• Additional information
• Gross weight: 0.19 g
• Manufacturer part number: CD4001BM
